Product Features

  • Rotates through 360 degrees tracking direction of load
  • Gives flexibility allowing use with large range of aircraft types
  • Flush to deck when not in use
  • Bolt-in versions - studs to suit customer’s requirement

T45R Helicopter Tie-Down

Monitor Marine products are available in a variety of finishes - please click here for more information.

____________________________________________________________________________________________

Helicopter Tie Down T45R

T45R Helicopter Tie-Down

The T45R has been designed to have all of the performance characteristics of the T45C but in a smaller package.  The eye of the T45R will revolve and allow alignment with the aircraft's position on the deck.  This allows a lower number of tie-downs to be fitted to a heli-pad.  It also provides flexibility allowing a large range of aircraft types to be accommodated.  This unit is available in both 'weld-in' and 'bolt-in' formats, with options for aluminium decks and installations with no under-deck access.

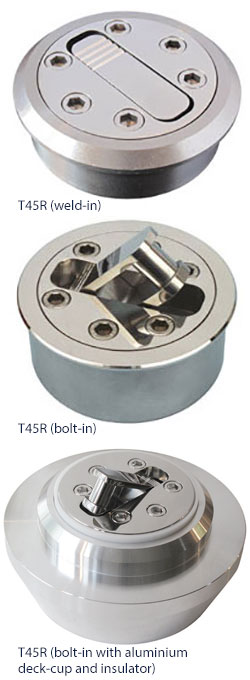

There are three versions of the T45R available:

• Weld-in: Part No. SuperYacht finish2079
• Bolt-in: Part No. SuperYacht finish2080

Monitor Marine DeckwareWeight: 5kg approx.





• Bolt-in complete with aluminium weld-in deck cup and insulator:

Part No. SuperYacht finish2172

Monitor Marine DeckwareWeight: 12.8kg approx.





  T45R
Max Loading 20 tonnes
Weight 5kg
DIA 142mm
SWL* 39kN
(4 tonnes)
Factor of Safety* 5:1



*Factor of Safety and Safe Working Load figures are calculated on a 45 degree line of pull.
