Product Features
- ¼ turn compression handle
- Ideal for larger hatches & thicker panels
- Easily customised to accommodate thicker doors panels & internal attachments
- Finger shutter plate to finger pull
- 316 stainless steel
- Cam operated locking mechanism
- Flush fitting
- Watertight
- Secure key locking
- Complete with installation kit
- Available with internal release for crew cabin installation
Flush Top Hatch Handle
Monitor Marine products are available in a variety of finishes - please click here for more information.
____________________________________________________________________________________________

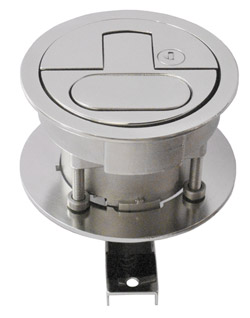

100mm Hatch Handle
(Flush Top)
Part No.
2115-F
2115-F-SY
Performs the same function as the smaller 80mm model. Introduced due to the demand for uses on heavier and larger hatches. The system also incorporates an increased diameter lifting handle.
Weight: 1.18kg approx.
____________________________________________________________________________________________
100mm Hatch Handle
(Deep Reach)
Part No. 2115-F-DR
2115-F-DR-SY
Supplied with a deeper reach cramping beam. Ideal for larger hatches and thicker panels. Clamping and locking ¼ turn with a cam operated compression mechanism.
Weight: 1.18kg approx.
____________________________________________________________________________________________
100mm Hatch Handle
(Crew Cabin)
Part No. 2115-F-CC
2115-F-CC-SY
External locking ¼ turn with internal release for crew cabin installation.
Weight: 1.53kg approx.
____________________________________________________________________________________________
Customised 100mm Hatch Handles
The above model 2115/F/CC can easily be customised for very thick panels.
Image below illustrates a customised handle.
____________________________________________________________________________________________
100mm Hatch Handle with Rear Shootpin Unit
