Product Features

  • Available in 'Bolt in' format as standard
  • Rotates through 360 degrees tracking direction of load
  • Folds flush to the deck when not in use
  • Includes integral drain
  • Suitable for all gear tie-down applications
  • Stud length to customer’s requirement

4 Bar Helicopter Tie-Down

Monitor Marine products are available in a variety of finishes - please click here for more information.


4-Bar Helicopter Tie-Down

4 Bar Helicopter Tie-Down

Part No. SuperYacht finish7516-SY

The 4 Bar is the most compact tie down of the range. It rotates through 360 degrees, tracking the direction of load, for tie down alignment. Folds flush to deck when not in use. 'Bolt in' format, includes integral drain and high polish finish as standard. As well as helicopters, it can be used for various other tie down applications.

Monitor Marine DeckwareWeight: 2.5kg approx.

Max Loading 8.75 tonnes
Weight 2.5kg
DIA 95mm
SWL* 17kN
(1.75 tonnes)
Factor of Safety* 5:1


*Factor of Safety and Safe Working Load figures are calculated on a 45 degree line of pull.

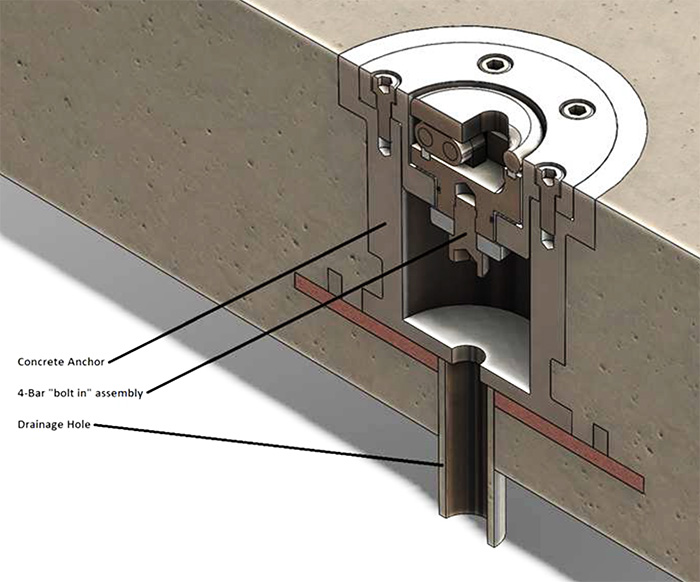

Top Fixing 4-Bar Helicopter Tie-DownNEW!! Version available for installation into concrete surfaces

Part No. SuperYacht finish8156-CA

4 Bar Helicopter Tie-Down for installation into concrete surfaces. The stainless steel housing is set into the concrete and the Connector screwed in to the housing to make it completely flush with surrounding surface.
Please see bottom of page for links to technical drawing, or contact us for more information.

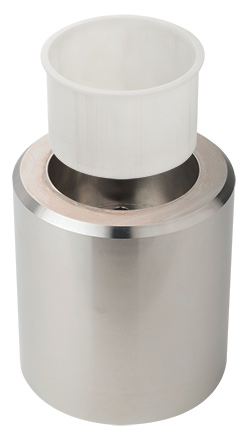

Helicopter Tie Down 4-Bar Acetal Cup housingDeck Housing for 4 Bar Helicopter Tie Down

Part No. SuperYacht finish21975

A Deck Housing for the 4 Bar Helicopter Tie-Down is available in 316 stainless steel, and is supplied complete with acetal cup for steel or aluminium deck installation. (Aluminium versions also available)
Weight: 7kg

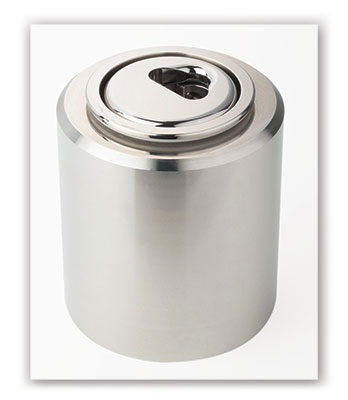

Helicopter Tie Down 4-Bar Acetal Cup housing closedDimensions:
Diameter - 130mm
Depth - 145mm
