North West Marine Distributors - Muir Vertical Capstans

Tel: (604) 607-7901

Muir Windlasses


Product Features

  • Deck-hugging snag free design
  • Unit can be mounted horizontally
  • Luxury chrome finish over marine grade bronze or 316 Stainless steel
  • Capstan features heavy duty knurled finish for increased grip
  • Heavy duty dual direction motor in 12 & 24V, AC & Hydraulic
  • Self aligning gearbox/adaptor
  • Stainless steel shaft and mounting bolts
  • Shaft seal

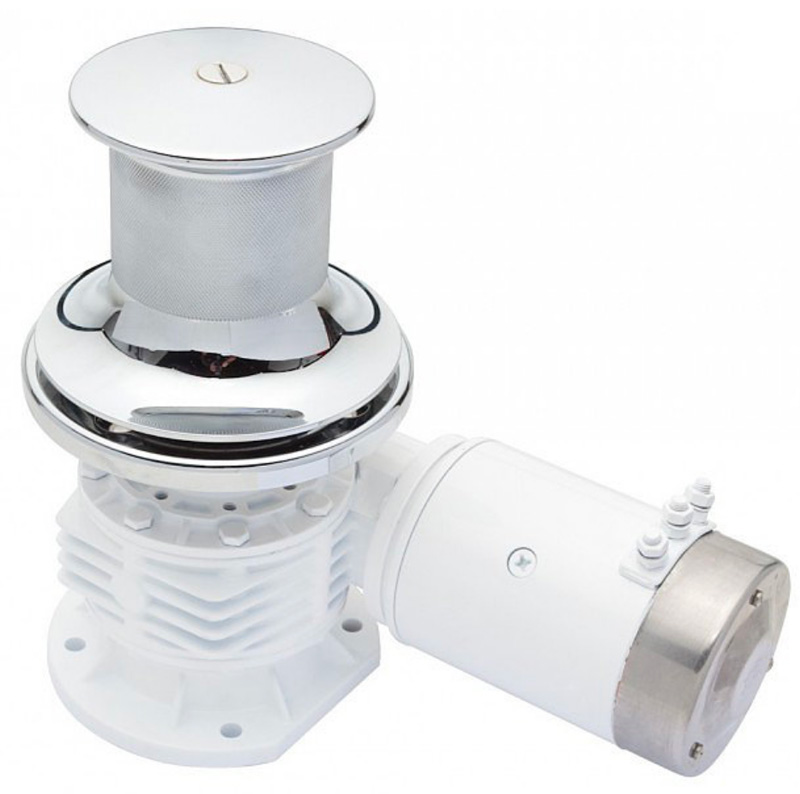

Muir Vertical Capstans

Designed to suit vessels up to 26m (84ft) the Muir range of capstans provide reliable and heavy duty operation for mooring, warping and anchoring for all recreational and commercial applications.

Muir Vertical Capstans VC650/850/2500/3500

Efficient and quick they can be installed independently or as a complete system with windlasses. Manufactured to the highest quality standard, featuring heavy chrome and gear drive assembly.

Accommodating varying deck thicknesses, they are popular for line hauling and fishing purposes. Available in 12 & 24 volt, Hydraulic & AC options.



Version
VC650
VC850
VC3500
VC3500
Vessel length
8-11m (26-36ft)
9-14m (29-45ft)
4-22m (45-70ft)
16-27m (51-86ft)
Voltage
12/24v
12/24v
12/24v
12/24v
Motor Wattage
600w
1000w
1200w
1500w
Hydraulic Pressure
N/A
N/A
10MPa (1450psi)
11MPa (1600psi)
Hydraulic Flow
N/A
N/A
20 litres/min
(5.5 gal/min)
28 litres/min
(7.5 gal/min)
Max load
295kg (650 lb)
386kg (850 lb)
1136kg (2500 lb)
1490kg (3285 lb)
Work Load
74kg (162 lb)
97kg (212 lb)
284kg (625 lb)
350kg (772 lb)
Amps Work Load
80/50
80/50
120/75
150/85
Max Line Speed
20m/min (64ft/min)
24m/min (77ft/min)
15m/min (48ft/min)
16m/min (53ft/min)
Chain Size
N/A
N/A
N/A
N/A
Rope Size
10-12mm
(3/8" - 1/2")
10-14mm
(3/8" - 9/16")
12-19mm
(1/2" - 3/4")
14-25mm
(9/16" - 1")
Net Weight
DC 9kg (20 lb)
DC 16kg (35lb)
DC 25kg (55 lb)
HYD 23kg (51 lb)
DC 27kg (59 lb)
HYD 19kg (42 lb)
