Muir Windlasses

Product Features

  • Muir’s patented Auto Free Fall, Power Up & Power Down, or Manual Release Free Fall are all available to you on the 1 unit!
  • Mechanical Auto & Manual Release Free Fall means no troublesome electronics need to be mounted on the Drum or in your chain locker
  • Drum Shaft on a serviceable bearing centre for smooth hassle free operation even under full load
  • Muir’s designed HDPE & UV protected Heavy Duty Brake means no over-run of the Drum during Free Fall.
  • All Muir Free Falling Drum Winches are supplied with Circuit Breaker, Reversing Solenoid Pack, Helm Control Switch and Fascia Panels, plus, Simple Tools & Hardware for an easy 30 second adjustment from Auto Free Fall; to Manual
    Free Fall and Power Up Power Down options
  • Installation Instructions and Service Manual provided, and backed by Muir’s 3 year limited warranty
  • Anchoring made easy, fast, and reliable with a Muir Drum Winch
  • No electronic components to fail
  • Larger Drum capacity than other Free Falls

PDF Drawings

View or Download PDF File

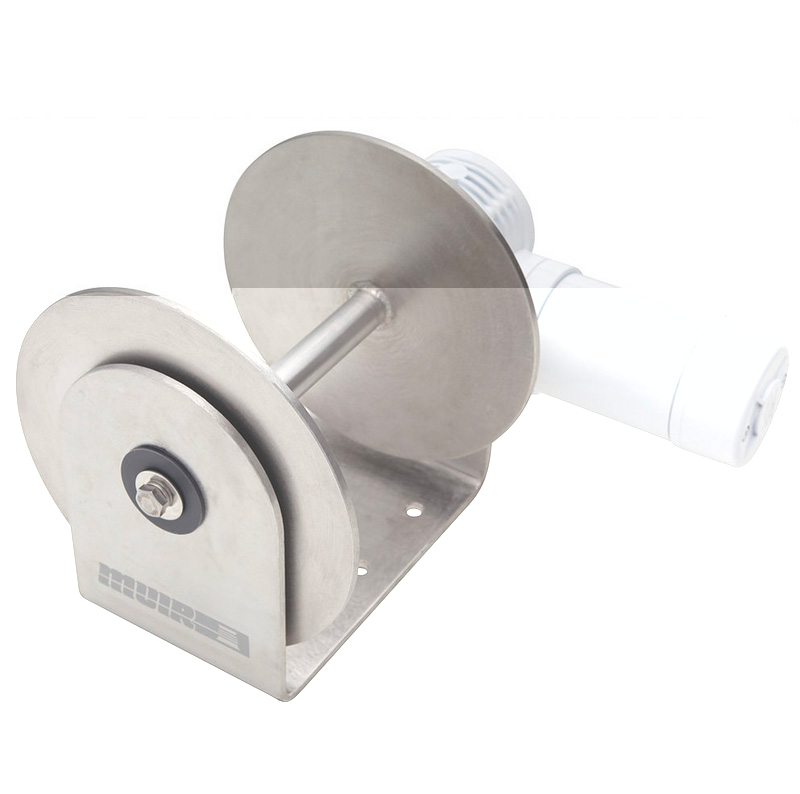

Muir Drum Winches DW10/12/15

Muir’s patented Auto Free Fall, Power Up & Power Down, or Manual Release Free Fall are all available to you in one unit making anchoring easy, fast, and reliable.

Muir Drum Winch DW08

  • Mechanical auto & manual release free fall means no troublesome electronics need to be mounted on the drum or in your chain locker.
  • Drum shaft on a serviceable bearing centre for smooth hassle free operation even under full load.
  • Muir-designed HDPE & UV protected heavy duty brake means no over-run of the drum during free fall.
  • All Muir free falling drum winches are supplied with a circuit breaker, reversing solenoid pack, helm control switch and fascia panels, as well as simple tools & hardware for an easy 30 second adjustment from Auto Free Fall; to manual free fall and power up/power down options.
  • Installation instructions and service manual provided, and backed by Muir’s 3 year limited warranty.
  • No electronic components to fail.
  • Larger drum capacity than other free falls on the market.
  • Does not require any more space than a standard drum winch.



Version
DW10 / DFF10
DW12 / DFF12
DW15 / DFF15
Vessel length
8-10m (26-34ft)
10-12m (34-40ft)
12-14m (40-47ft)
Voltage
12/24v
12/24v
12/24v
Motor Wattage
1000w
1200w
1500w
Max load
260kg (575 lb)
312kg (690 lb)
390kg at 8m/min (860 lb)
Work Load
75kg (165 lb)
90kg (198 lb)
112kg at 8m/min (247 lb)
Max Line Speed
33m/min (108ft/min)
33m/min (108ft/min)
33m/min (108ft/min)
Chain Size (various)
8-10mm
(5/16" - 3/8")
8-10mm
(5/16" - 3/8")
8-12mm
(5/16" - 1/2")
Rope Size (various)
10mm (3/8")
10mm (3/8")
12mm (1/2")
Net Weight
30-31kg
32/34kg
35/37kg
Capacity (Drum)
100m of 8mm line or 80m of 10mm line + 6m of 8mm chain
100m of 8mm line or 80m of 10mm line + 6m of 8mm chain
100m of 8mm line or 80m of 10mm line + 6m of 8mm chain
Finish
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
Standard Equipment
RCMS, Footswitch, Handle
RCMS, Footswitch, Handle
RCMS, Footswitch, Handle
Manual Override System
Optional
Optional
Optional
