Muir Windlasses

Product Features

  • Rope chain combination gypsy for rope/chain combination or chain only
  • Rope Chain Management System (RCMS)
  • Quick release integrated swivel chain pipe cover
  • Gypsy with capstan (VRC) or gypsy with low profile clutch top arrangement (VR)
  • Heavy duty marine grade, dual direction motor in 12V DC, 24V
  • 316 Stainless steel
  • Independent gypsy and capstan operation (VRC model)
  • Capstan models feature heavy duty knurled finish for increased grip
  • Quick fit adaptor
  • Stainless steel shaft
  • Cone clutch/brake
  • Stainless steel mounting bolts
  • Shaft seal
  • Lubricating grease nipple
  • Clutch release handle
  • Installation/operation booklet

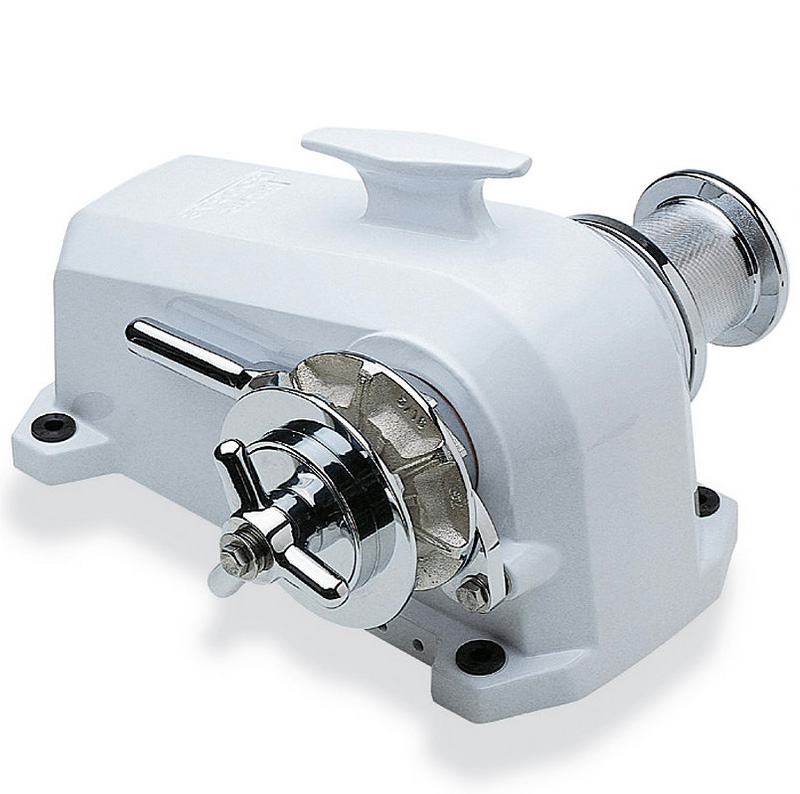

Muir Compact 4200

The powerful Compact range of horizontal windlasses provides the perfect alternative to vertical models for all recreational, commercial and fishing vessels up to 25 metres.

Muir Compact 3500

The Compact series of horizontal windlasses are ideal for installations where chain locker space is at a premium or not easily accessible. These complete above deck units are constructed from durable marine alloy or new low-maintenance composite  housings enclosing the powerful and heavy duty motor and gearbox, waterproofing and protecting it from the harsh elements.

All running gear is designed for durability and performance, manufactured from marine grade bronze with luxury chrome or optional traditional polished bronze finish.


HR 4200 Thor
Vessel length
18-25m (58-80ft)
Motor Wattage
Hydraulic Pressure
12MPa (1750psi)
Hydraulic Flow
28 litres/min  (7.5 gal/min)
Max load
2045kg (4500 lb)
Work Load
500kg (1100 lb)
Amps Work Load
Max Line Speed
13.5m/min (44ft/min)
Chain Size
10-13-16mm (3/8" - 1/2" - 5/8")
Net Weight
DC 64kg (140 lb) - DC HYD 63kg (139 lb)
316 Stainless Steel
Standard Equipment
RCMS, Footswitch, Handle
Manual Override System
